RC0606V2

Highlights

l More than 5m radius pick-up sounds each mic, cover full classroom in 2 mics.

l Suitable for normalized recording and playback classrooms or conference rooms with interactive needs.

l Easy installation, reduced project deployment time.

l 1 USB audio interface can be integrated into the computer as a sound card.

l Visual control software simplifies panel operation.

Features

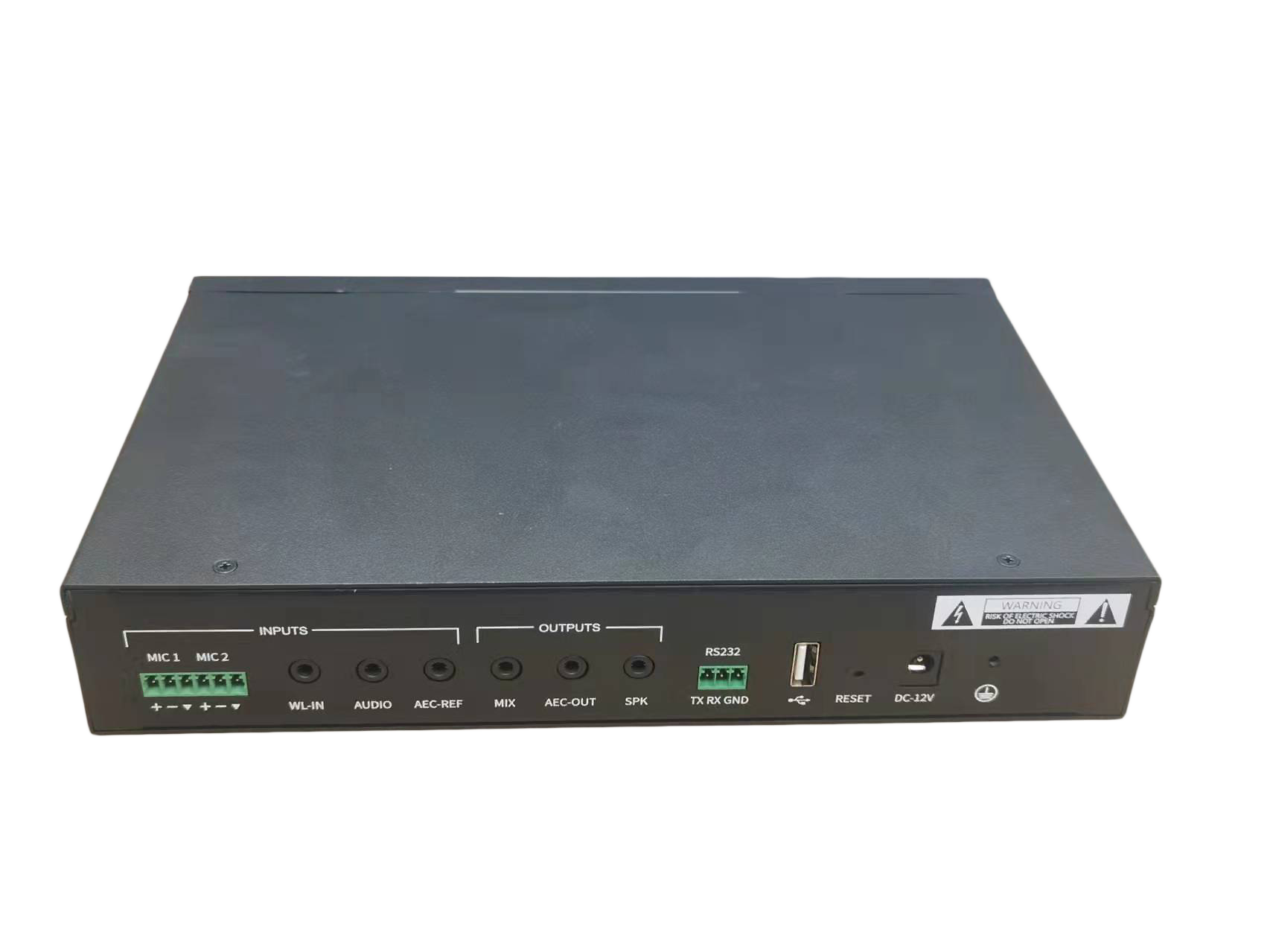

l 2 Balanced mic inputs, support 48V phantom power supply, using Phoenix terminal interface.

l 1 external wireless microphone input, using 3.5mm earphone interface.

l 2 line inputs, using 3.5mm earphone interface.

l 3 line outputs, using 3.5mm earphone interface.

l 1 USB2.0 A interface, supports bidirectional audio data transmission or visual software configuration.

l 2 microphone input volume adjustment knobs.

l 1 RS-232 serial port, which can be connected to the control terminal.

l 1 RESET key to restore the default factory settings.

RC0606V2 is a compact 6-channel interactive digital audio processor. It adopts adaptive echo cancellation, adaptive noise reduction, and smart mixing technology and has an extremely high SNR reproducing a clear and natural sound. RC0606V2 is equipped with Syncview's exquisite and compact spherical omnidirectional microphone, the system perfectly picks up the sound and cancels echoes in a room size of 100m2.

According to the design ideas of Syncview’s smart, configuration-free and simple to use, RC0606V2 adopts adaptive algorithm and is ready to use after installation. It is convenient for engineers to install and debug, and also meets the needs of normalized interaction and audio collection of recording system.
