Overview

RC1206V2-U is a 12-channel interactive digital audio processor designed by GEAZAN. It adopts adaptive echo cancellation, adaptive dereverberation, adaptive noise reduction, and smart mixing technology and has an extremely high SNR reproducing a clear and natural sound.

According to the design ideas of GEAZAN’s smart, configuration-free and simple to use, RC1206V2-U adopts adaptive algorithm and is ready to use after installation. It is convenient for engineers to install and debug, and also meets the needs of normalized interaction and audio collection of recording system.

Features

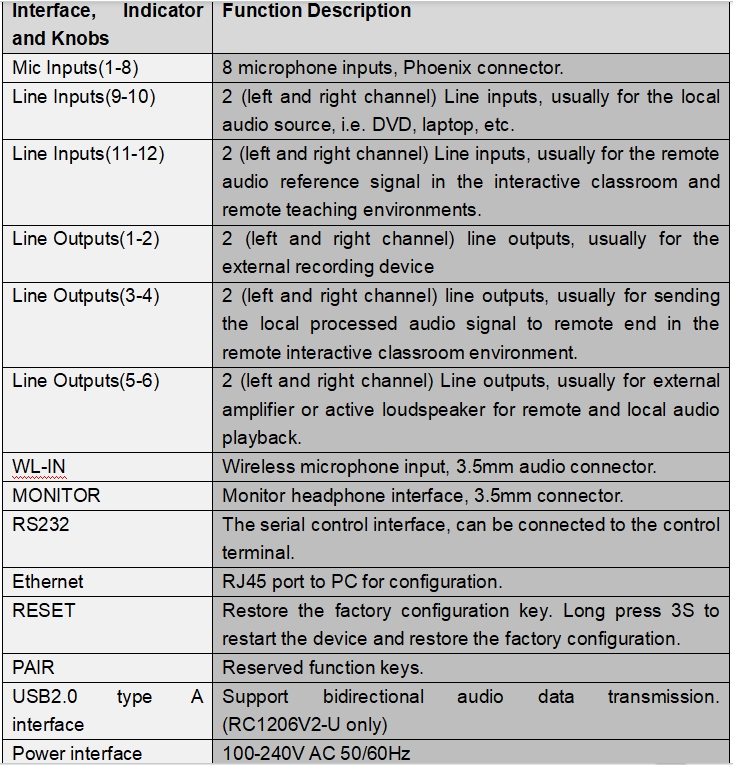

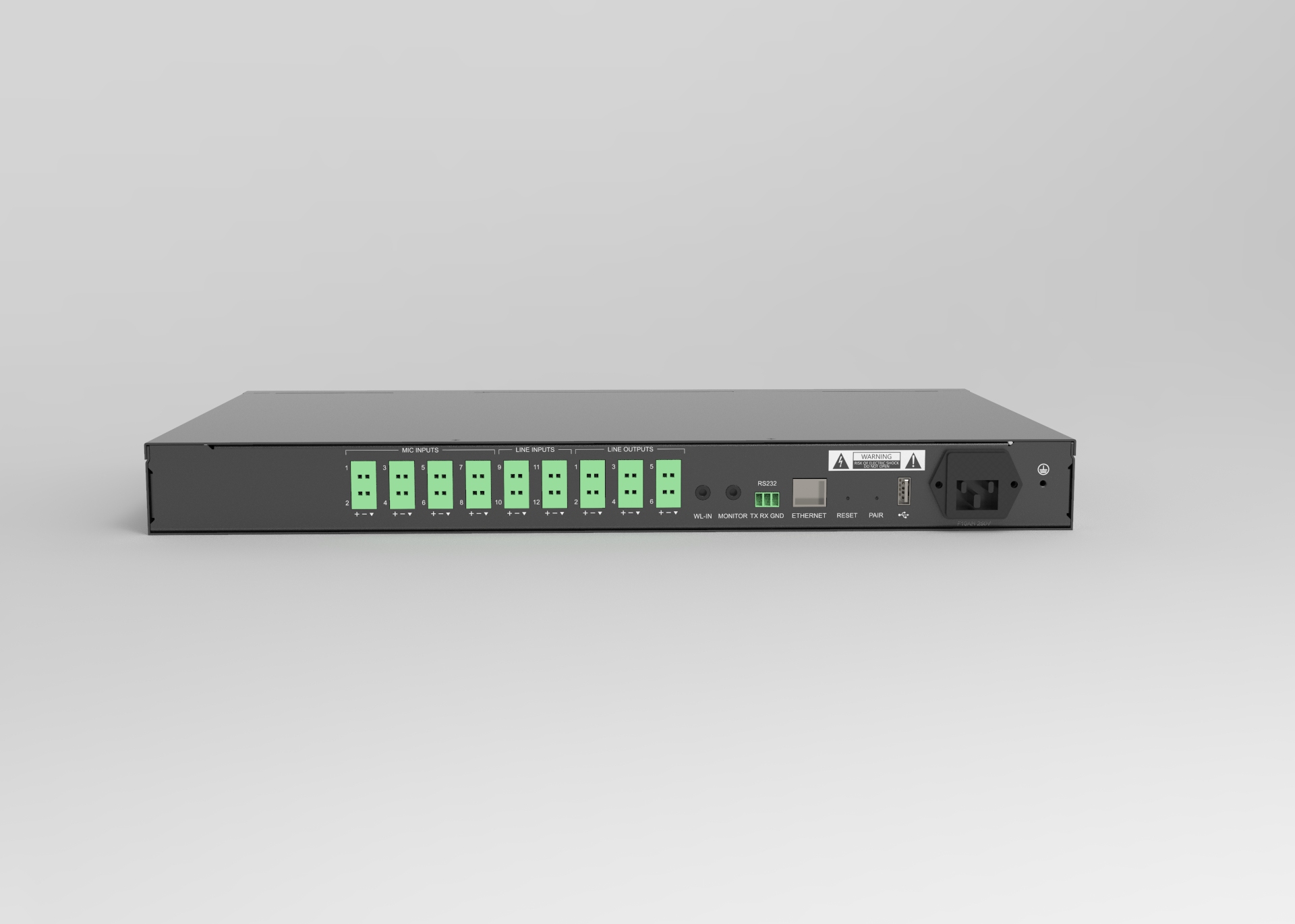

l 8 Balanced mic inputs, support 48V phantom power supply, Phoenix connector.

l 4 Balanced line inputs, Phoenix connector.

l 6 Balanced outputs, Phoenix connector.

l 1 Wireless microphone interface, 3.5mm connector.

l 1 Monitor headphone interface, 3.5mm connector.

l 1 USB2.0 type A interface, support bidirectional audio data transmission.

l 1 RS-232 serial port, can be externally connected to the control terminal;

l 1 RESET key, used to restore the default factory settings.

l 1 RJ45 interface, external configuration computer.

l Full-band adaptive echo cancellation technology.

l Automatic reverberation suppression.

l Smart sound mixing and microphone selection technology.

l Dynamic adaptive noise reduction up to 18dB.

l Sampling frequency 32kHz, A/D-D/A in 24-bit.

l Visual control software simplifies panel operation.

l No complicated software configuration, ready to use after device installation.

l RMS and peak value voltage meters; real-time signal magnitude monitoring.

l Abundant signal processing module:

Ø Filtering: high pass and low pass

Ø Equalization: 7 band parametric equalization

Ø Audio processing: limiter, compressor, noise threshold, gain control, feedback suppression

Ø Mixing: smart mixing, matrix mixing

Ø Meter module

Ø Control: volume balance, volume control
