l AI Intelligent Speech Algorithm: Output full and clear sound without complex debugging and testing.

l Low Latency: With high-speed DSP and efficient algorithm, processing latency time reduced to 7ms

l High Fidelity: Advanced noise cancellation and feedback cancellation algorithm, reduce sound quality loss.

l Reinforcement & Interaction: Support reinforcement and interaction synchronized.

Audio Algorithm Software Module:

l New generation AFC self-learning adaptive feedback cancellation.

l New generation AEC adaptive echo cancellation.

l New generation ANS dynamic adaptive echo cancellation.

l Support routing function, distribute and switch signal.

l Provide RMS meter and Peak meter to monitor audio signal.

l Support intelligent mixing of multiple microphones, with microphone selection function.

l Support automatic gain control.

l DSP Module:

- Filters modules, include low pass filter and high pass filter.

- Support parameter balancing equipped 7 section parameter balancing module.

- Support ducking function.

- Build-in compressor function.

- Support volume adjustment.

Product Description:

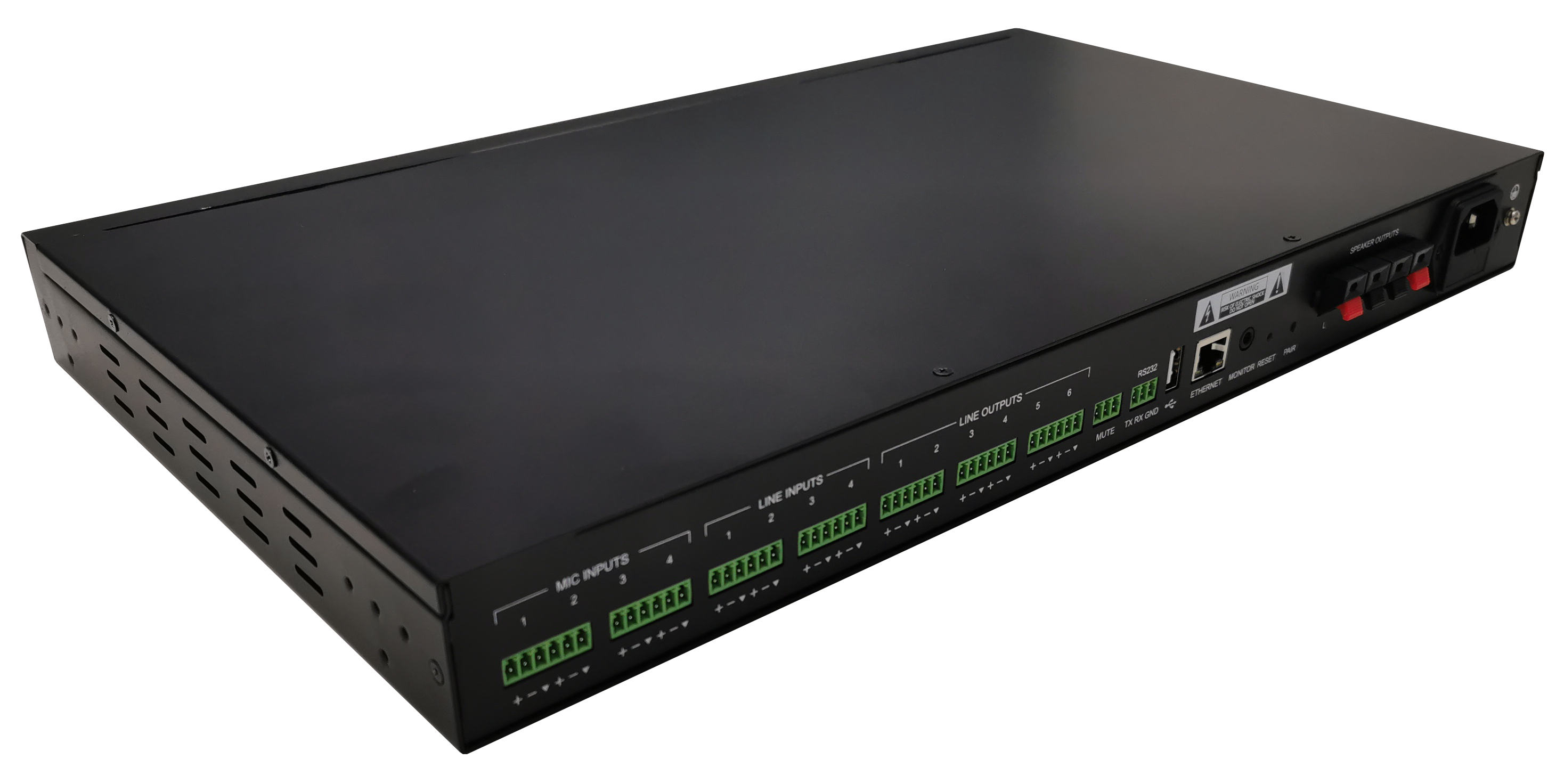

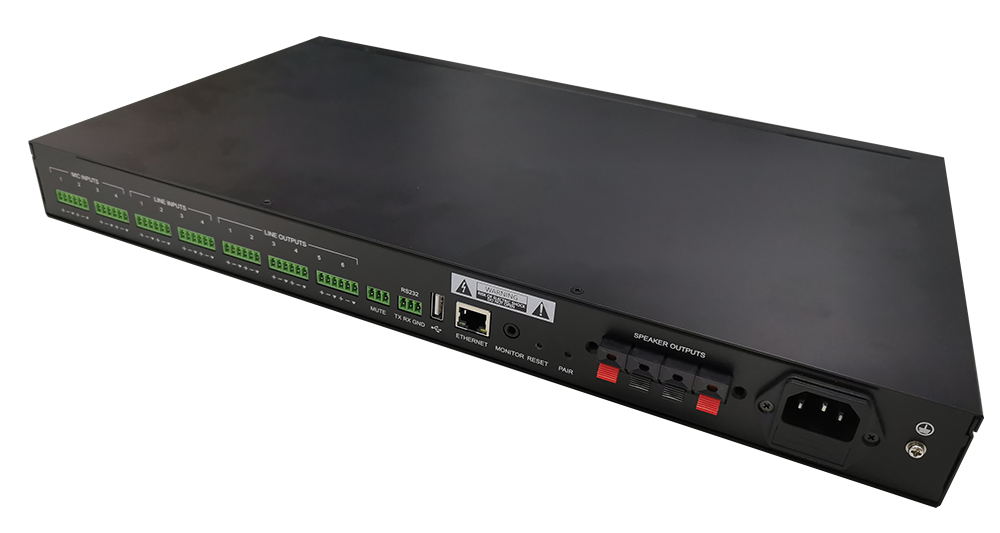

l Support local sound reinforcement and remote interactive concurrent processing.

l 4 channels Mic. input phoenix port, 48V phantom power.

l 4 channels balanced line input phoenix port, support low latency wireless microphone connection, support ducking setting for both wired and wireless microphone.

l 6 channels balanced line output phoenix port.

l 2 channels - left and right, amplifier output phoenix port. Rated power 100W for each channel.

l 1 USB2.0 port, support audio signal duplex transmission.

l 1 Mic. mute function port. Connect external mute button.

l 1 3.5mm port for monitor headphone.

l 1 RS-232 port for external control terminal.

l 1 RJ45 port for external configuration computer.

l 1 RESET key for factory data reset.
